NAME OF PARTS

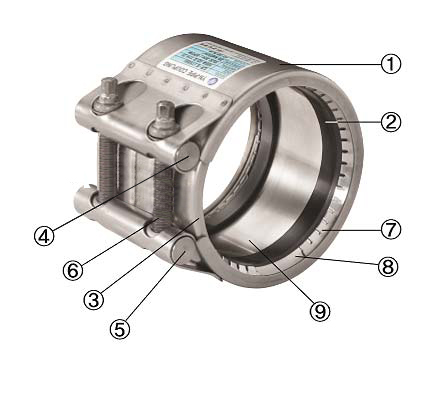

Product Components and Materials Guide
※ You can check by swiping the table left or right (swipe).
| No | Component | Meterial | |
|---|---|---|---|
| ① | Case | SUS 304 / SUS 316L | |
| ② | Rubber | EPDM | Water, air, powder, transfer tube, etc. (-30℃ ~ +90℃) |
| NBR | Various types of oil and gas transfer tube, etc. (-20℃ ~ +70℃) | ||
| SILICONE | High-temperatuer steam transfer tube, etc. (-50℃ ~ +250℃) | ||
| VITON | For hight-temperatuer chemical transfer tube. etc (-30℃ ~ 230℃) | ||
| ③ | Slide Plate | SUS 304 / SUS 316L | |
| ④ | Round Bar Washer | SUS 304 / SUS 316L | |
| ⑤ | Round Bar Nut | SUS 304 / SUS 316L | |
| ⑥ | Bolt | SUS 304 /SUS 316L | |
| ⑦ | Grip Ring | SUS 304H / 301H | |
| ⑧ | Grip Insert | SUS 304 | |
| ⑨ | Insert-Plate | PE, SUS 304(Option) | |
※ Recommend to using the Insert Plate when the Temperature of over 40’c or a Vacuum line.
