  • SHIP PARTS

    SINCE 1986 Best Quality Price Satisfaction Timely Delivery YOUNGNAM METAL CO.. LTD.

Penetration PieceRubber Pad & Sterl StrapHydro Test Plug

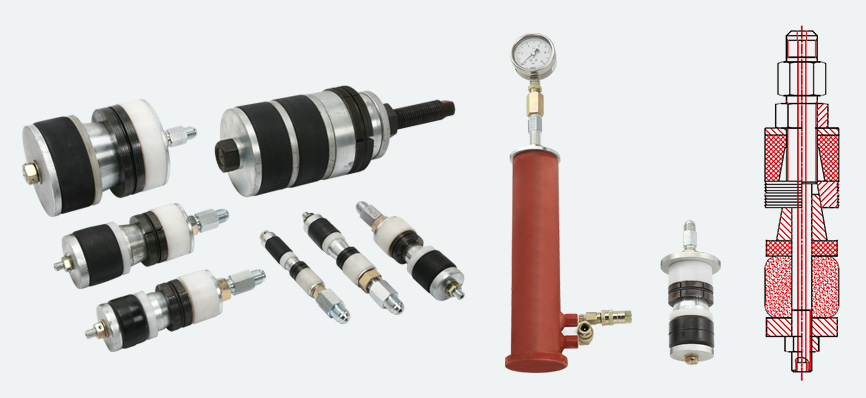

HYDRO TEST PLUG
(For high pressure, For low pressure)
A specially designed PLUG for testing in order to test the airtightness of water, petrochemical products, and gas or oil in pipe lines such as piping of ships and general refrigeration factories, large buildings, and industrial plant construction.

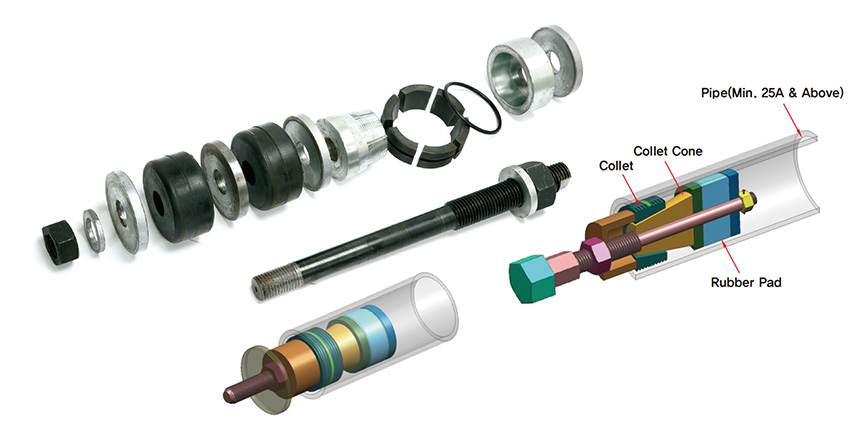

For high pressure HYDRO TEST PLUG (0-100Kg/㎠)

Purpose of installation
As a specially designed high-pressure test PLUG to test the airtightness of water, petrochemical products, gas or oil, etc. on the pipe line for piping of ships and general refrigeration factories, large buildings, and industrial plant construction, the pipe line After the installation is completed, the last pressure and tightness test is to insert the PLUG into the end of the pipe, and at this time, the commercial pressure and the maximum pressure can be tested.
For low pressure HYDRO TEST PLUG (0-3Kg/㎠)

Purpose of installation
It is a PLUG for testing that performs water pressure after completing piping such as BRIDGE, ON DECK, or engine room of new shipbuilding. It is extremely easy to handle and has excellent oil and ozone resistance rubber plugs.
In addition, in order to prevent marine pollution (oil leakage) flowing from the ON deck to the SCUPPER when a vessel in operation enters, anchors, or anchors, rather than blocking the SCUPPER by using a wooden PLUG or cement, it is always provided in the vessel and simply installed when necessary. It is a new PLUG that breaks away from the conventional method that can be installed and used effectively.
HYDRO Test Plugs Reports for Steel Pipes

※ You can check by swiping the table left or right (swipe).

HYDRO Test Plugs Reports for Steel Pipes
SIZE Schedule High Pressure Test Plugs
Torque(N.m) Working Pressure(kgf/㎠) Bursting Pressure(Kgf/㎠)
25A #40 30 17.5 70
#80 20 25 100
32A #40 80 25 100
#80 60 25 100
40A #40 100 22.5 90
#80 70 25 100
50A #40 140 12.5 50
#80 80 22.5 90
65A #40 140 12.5 50
#80 80 25 100
80A #40 200 10 40
#80 160 20 80
100A #40 240 11.3 45
#80 240 13.8 55
125A #40 260 7.5 30
#80 240 22.5 90
150A #40 280 5 20
#80 240 20 80
HYDRO Test Plugs Reports for Steel Pipes
SIZE Schedule Low Pressure Test Plugs
Torque(N.m) Working Pressure(kgf/㎠) Bursting Pressure(Kgf/㎠)
25A #40 30 2 6
#80 25 2 6
32A #40 40 2.7 8
#80 35 3 9
40A #40 50 2 6
#80 45 2.3 7
50A #40 80 3 9
#80 60 3 9
65A #40 140 2 6
#80 120 2 6
80A #40 200 2 6
#80 180 2.3 7
100A #40 240 1.5 4.5
#80 220 1.5 4.5
125A #40 260 1.3 4
#80 240 1.5 4.5
150A #40 280 1.2 3.5
#80 280 1.2 3.5
HYDRO Test plugs Reports for CPVC

※ You can check by swiping the table left or right (swipe).

HYDRO Test plugs Reports for CPVC
SIZE Schedule High Pressure Test Plugs
Torque(N.m) Working Pressure(kgf/㎠) Bursting Pressure(Kgf/㎠)
32A #80 50 17.5 70
40A 60 17.5 70
50A 60 10 40
65A 70 7.5 30
80A 120 7.5 30
100A 150 7.5 30
HYDRO Test plugs Reports for CPVC
SIZE Schedule Low Pressure Test Plugs
Torque(N.m) Working Pressure(kgf/㎠) Bursting Pressure(Kgf/㎠)
32A #80 50 2.7 8
40A 60 2.7 8
50A 60 2.7 8
65A 80 2.5 7.5
80A 100 2.5 7.5
100A 14 1.7 5
